Whip Checks

prevent injuries or accidents resulting from hose or coupling failure

Use whipchecks to help prevent injuries or accidents resulting from hose or coupling failure. A whipcheck extends across the hose fittings to give standby safety for hose.

America's # 1 Source

  • Safety Rig whipchecks

    Safety Rig is America's #1 Source for oilfield safety products, including whipchecks and whipsocks, pipe clamps and hose hobbles, fall arrest systems and more. For more information on the safety products we carry, email us at sales@safetyrig.com

  • whip checks for industrial hoses

    Our steel whip check and hose restraints are designed for industrial hose and hydraulic hoses and are made in the USA. Help protect workers from injury with quality whip checks installed on each end of hoses used for air, water, oil and other applications where hose failure could cause injury. We stock all sizes of both hose to hose and hose to tool whip check hose restraints in both steel and stainless steel syles.

  • high pressure nylon hose whip checks

    Our nylon lanyard whips are designed for high pressure and ultra high pressure applications. The nylon lanyards whip restraints can be used to fit many hose types in pressures from 300 psi up to 40,000 psi. Contact us today for a complete specs on these style of higher pressure safety whip checks for hoses rated over 200 psi used for hydraulic and high pressure air and water applications. All MADE IN USA. WCHGL3.0 36" AND WCHGL2.0 24" , WCHGL6.0 50" are versitalie for many hose sizes.

Why whipchecks

prevent injuries or accidents resulting from hose or coupling failure

Whipchecks are designed to help prevent injuries or accidents resulting from hose or coupling failure. A whipcheck extends across the hose fittings to give standby safety for a hose. Simply pull back the spring and slip the loops on the whipcheck over each hose before connection to provide security against hose whip. Contact us today, let us know your requirements and we will find the right whipchecks for your needs. Learn more about whipchecks how to.


WHIPCHECKS

Whipchecks help prevent injuries or accidents resulting from hose or coupling failure. A whipcheck extends across the hose fittings to give standby safety for hose. Simply pull back the spring and slip the loops on the whipcheck over each hose before connection to provide security against hose whip.

Whipchecks are designed with a 5 to 1 safety margin at 200 psi. At 300 psi that margin drops to 3 to 1. Any pressure above that is not a suitable application for whipchecks and may result in injury or death in the event of an explosive coupling decompression.

We recommend whipchecks be used only on AIR HOSES carrying no more than 200 PSI. Any other use is at your own risk.
If your hose application is hydraulic OR exceeds 200 psi, we strongly recommend that you use our high pressure hose safety whip restraint checks, specifically designed to prevent hose whip on high-pressure hose applications. For more information on hydraulic whip checks and high-pressure hose safety restraints EMAIL sales@safetyrig.com or call 832-474-4440

Hose-Hose Whipcheck

Hose-To-Hose Whipchecks

Whipcheck designed specifically to secure a hose-to-hose connection.

Cable Hose I.D. Length Max WP psi Part Number
1/8" 1/2" - 1-1/4" 20-1/4" 200 WCH1
3/16" 1/2" - 2" 28" 200 WCH3
1/4" 1-1/2" - 3" 38-1/4" 200 WCH2
3/8" 4" 44" 200 WCH4

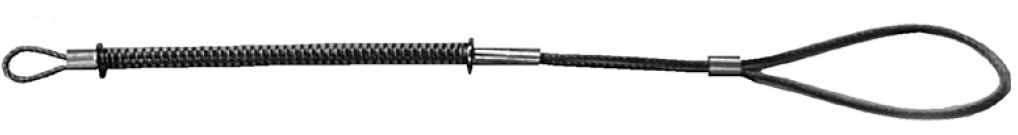

Hose-Tool Whipcheck

Hose-To-Tool Whipchecks

Whipcheck designed specifically to secure a hose-to-tool connection.

Cable Hose I.D. Length Max WP psi Part Number
1/8" 1/2" - 1-1/4" 20-1/4" 200 WCHT1
3/16" 1/2" - 2" 28" 200 WCHT3
1/4" 1-1/2" - 3" 38" 200 WCHT2
3/8" 4" 44" 200 WCHT4



WA2B Whipcheck

Bronze/Copper Ferrule Whipchecks

WCH2 made with bronze/copper ferrules for special environmental conditions.

Cable size: 1/4", Part #: WCH2B



WB1SS Whipcheck

304 SS Cable Whipchecks

WCH1 or WCH2 made with 304 stainless steel cable and springs with bronze/copper ferrules for special environmental conditions.

Cable size: 1/8", Part #: WCH1SS
Cable size: 1/4", Part #: WCH2SS



Bolt-On Whipcheck

Bolt-On Whipchecks

WCHT1 made with stainless steel safety marine eye used to connect safety cable to a bolt on tool.

Cable size: 1/8", Part #: WCHT1E

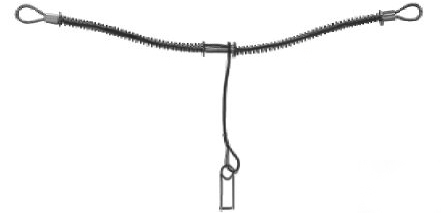

Lanyard Whipcheck

Hose-To-Hose Lanyard Whipchecks

WCH1 made with safety clips and lanyards used to lock Air King, A type, Surelock Couplings.

Cable size: 1/8", Part #: WCH1C

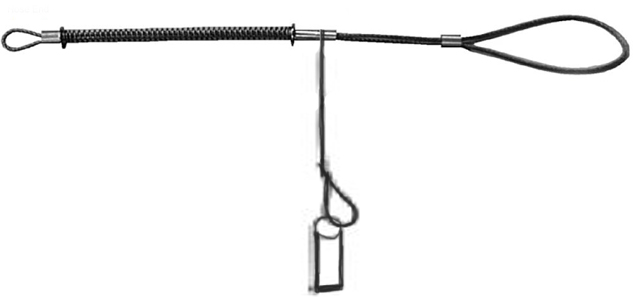

Lanyard Whipcheck

Hose-To-Tool Lanyard Whipchecks

WCHT1 made with safety clips and lanyards used to lock Air King, A type, Surelock Couplings.

Cable size: 1/8", Part #: WCHT1C

� Whipcheck is the low cost answer to eliminate injuries caused by broken air hose connections
� Whipchecks use strong steel cables to help prevent hose whip.
� Highly resistant to rust and corrosion
� Hose-to-hose or hose-to-rigid outlet
� No tools needed - Easy to install and remove
� Upon request, whipchecks are also available with bronze/copper ferrules.
� Also available with 304 stainless steel cable and springs with bronze/copper ferrules.
� Accepted by: OSHA, MSHA, U.S. Army Corps. of Engineering, Bureau of Mines, Bureau of Reclamation

INSTALLATION !!!
Whipcheck Incorrect Installation Whipcheck Correct Installation

Incorrect Install
Whipchecks should NOT be installed with slack in the safety cable.

Correct Install
Whipchecks should be installed in the FULLY EXTENDED position.



HYDRAULIC / HIGH-PRESSURE  HOSE SAFETY

Hose whipchecks and safety accessories specifically designed for use with hydraulic OR other high-pressure hose applications exceeding 200 PSI.


PRODUCT_NAME_HERE

High-Pressure Whipchecks

Whip checks limit the hose from whipping in the event of a connection failure. Whip checks are made of durable nylon strapping with extra heavy stitching.



PRODUCT_NAME_HERE

Containment Grips

Containment grips limit the possibility of serious injury to personnel in the event of a connection failure. Containment grips are available in stainless steel or galvanize plated carbon steel



PRODUCT_NAME_HERE

Support Grips

Support grips assist in holding the weight of the hose as it hangs in vertical or slanted positions. Support grips are made of high grade, coated, galvanized wire.



PRODUCT_NAME_HERE

Bend Restrictors

Bend restrictors, which are available for most hoses, assist in reducing the stress near the end fitting as well as prevent kinking of the hose. Bend restrictors are made of PVC material.



Hose Spring Guards

Spring Guards

Spring guards, which are available for most hoses, reduce stress near the hose end fitting and prevent kinking of the hose. In addition, they can be custom fit to the length of the hose. Spring guards are made of high tensile spring steel with a rust resistant coating.



PRODUCT_NAME_HERE

Burst Guards

Burst guards protect the operator and surrounding equipment from hose failure. Burst guards are made of synthetic rubber with wire steel reinforcement.



PRODUCT_NAME_HERE

Abrasion Covers

Abrasion covers help protect the hose from excessive wear due to use on rough surfaces. Abrasion covers are made of clear vinyl and reinforced with a rigid PVC helix coil.

For pricing and information, email us at sales@safetyrig.com or call us at (832) 474-4440.
