Whip Socks

restrain high pressure hoses

Whip socks, sometimes called cable socks, are the new best way to restrain high pressure hoses. The whip sock has a unique design that prevents the very real and unpredictable whipping of a high pressure hose during a failure.

America's # 1 Source

Safety Rig whipsocks

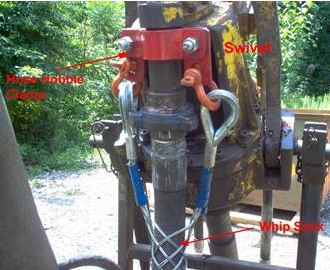

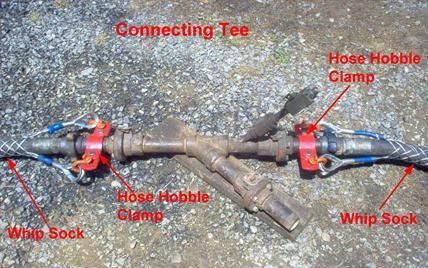

Safety Rig is America's #1 Source for oilfield safety products, including whipchecks and whipsocks, pipe clamps and hose hobbles, fall arrest systems and more. For more information on the safety products we carry, email us at sales@safetyrig.com
whip socks - made in usa

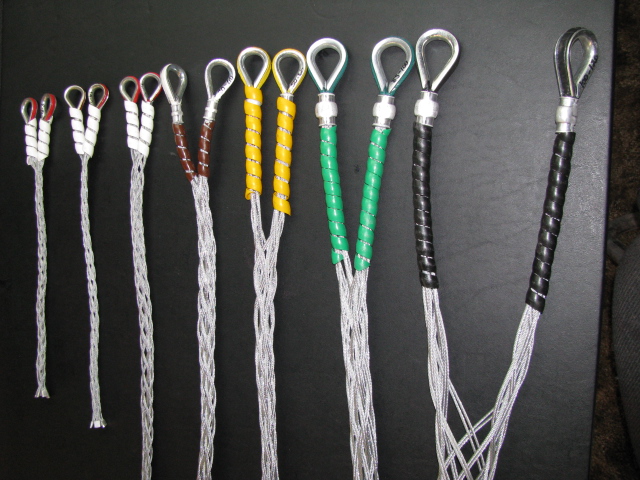

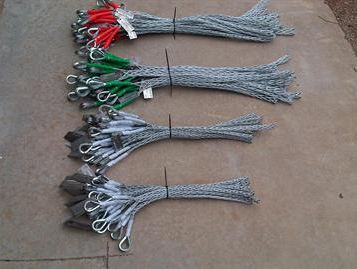

whip socks of all sizes

Our domestic made whip socks are made in the USA and of superior quality. We offer sizes to fit all types of hose from 3/8" up to 8" hoses sizes. Contact us today for more information on all the sizes we offer. spec and pressure ratings.
CHINESE FINGER style WHIP SOCKS - made in the usa
THE HARDER YOU PULL, THE TIGHTER THEy GET

Whip socks act like the old chinese finger game and are as the harder you tug the tighter they grip. This results in a safe and effective way to restrain hoses. Safety Rig whipsocks are made of the highest quality and are also availible in custom lengths to fit longer hoses or to run the entire length of a hose. We also offer stainless steel options.

Why whipsocks

Restrain and prevent unpredictable whipping

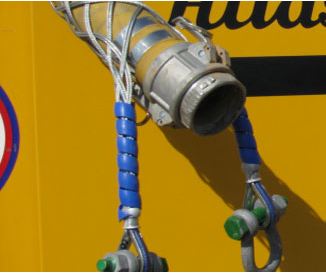

Whip socks or sometimes called cable socks are the new best way to restrain high pressure hoses. The whip sock has a unique design that prevents the very real and unpredictable whipping of a high pressure hose during a failure. The real genius behind these new designs is the woven steel that grips and tightens over a large area of the hose as it suppresses and confines the hose that has ruptured. Contact us today, let us know your requirements and we will find the right whipsocks for your needs.

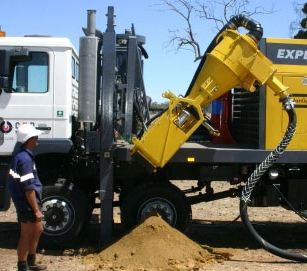

WHIPSOCKS IN WORKPLACE

Whip sock is an effecient way for a company to make a potentially dangerous workspace much safer for employees. The whip sock is also one more way to prevent a good deal of damage to adjacent equipment if there were to be a high pressure breakdown.

Whipsock Specifications

Size	Hose OD (in)	Hose OD (mm)	Grip Length	Eye Length	Ttl Length	# Plies	Approx. Weight	Avg. Break Strength	Part Number
3/8"	5/16" - 1/2"	8-14 mm	11.8	3.1	15.7	8x3	1/4 lb	4200 lbs	WS1
1/2"	1/2" - 3/4"	14-20 mm	17.7	3.9	21.7	8x3	1/4 lb	4200 lbs	WS2
7/8"	3/4" - 1-1/8"	20-30 mm	19.7	5.5	25.2	12x2	3/4 lb	6200 lbs	WS3
1"	1-1/8" - 1-1/2"	30-40 mm	27.6	6.7	34.3	12x2	1 lb	14,000 lbs	WS4
1-1/4"	1-1/2" - 1-7/8"	40-50 mm	31.5	6.7	38.2	12x2	1.1/4 lb	14,000 lbs	WS5
1-1/2"	1-7/8" - 2-3/8"	50-60 mm	39.4	9.8	49.2	12x2	2.1/4 lbs	23,000 lbs	WS6
2"	2-3/8" - 2-3/4"	60-70 mm	41.3	9.8	51.2	12x2	2.1/2 lbs	23,000 lbs	WS7
2-1/2"	2-3/4" - 3-3/8"	70-85 mm	43.3	10.6	53.1	12x2	5.1/4 lbs	23,000 lbs	WS8
3"	3-3/8" - 3-7/8"	85-100 mm	55.1	13.4	72.4	12x2	5.1/4 lbs	26,000 lbs	WS9
3-1/2"	3-7/8" - 4-3/4"	100-120 mm	57.1	15	72	12x2	5.1/2 lbs	26,000 lbs	WS10
4"	4-3/4" - 5-1/2"	120-140 mm	70.9	15.7	86.6	16x2	7.1/2 lbs	34,000 lbs	WS11
6"	5-1/2" - 7"	140-180 mm	76.8	16.5	93.3	16x2	8 lbs	34,000 lbs	WS12

INSTALLATION !!!

When the whipsock is installed on a hose, it is important that the distance from side to side as indicated by this RED LINE, is greater than or equal to the height indicated by the YELLOW LINE. This whipsock is too large for this hose.

Diamonds height and width distances are the same. This whipsock is a good fit for this hose.

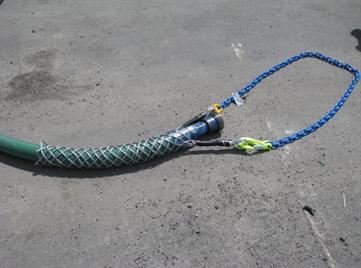

We recommend anchoring the end of the whipsock with a rubberized tape. This will improve the gripping action and prevent movement of the whipsock.

Recommended For:

• high-pressure HYDRAULIC applications
• high-pressure AIR applications
• high-pressure WATER applications

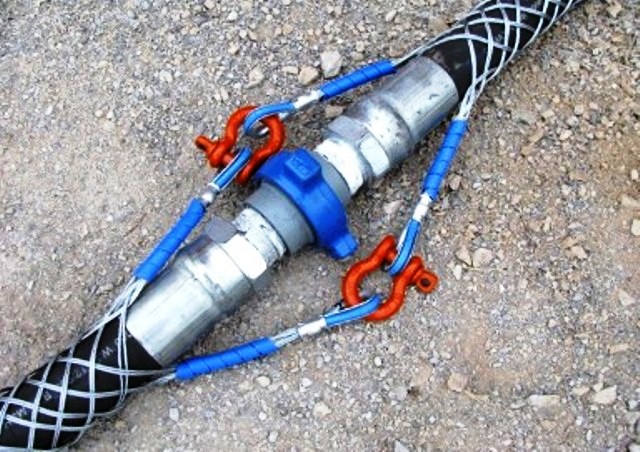

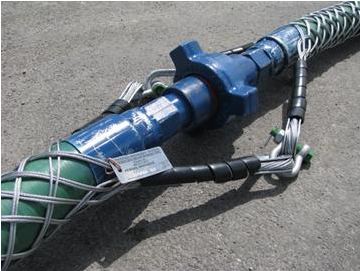

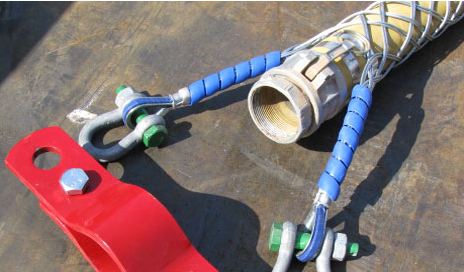

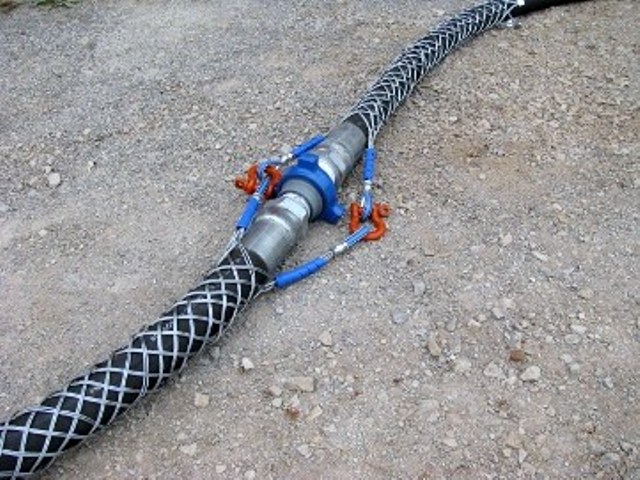

Two leg whip socks are AVAILABLE in all sizes.

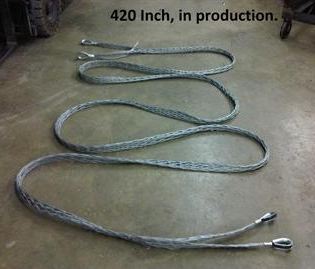

CUSTOMIZED lengths and anchor points can also be fabricated.

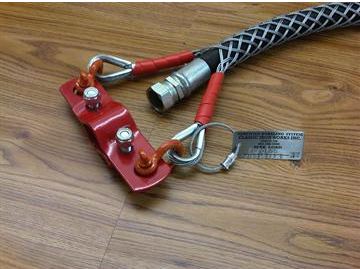

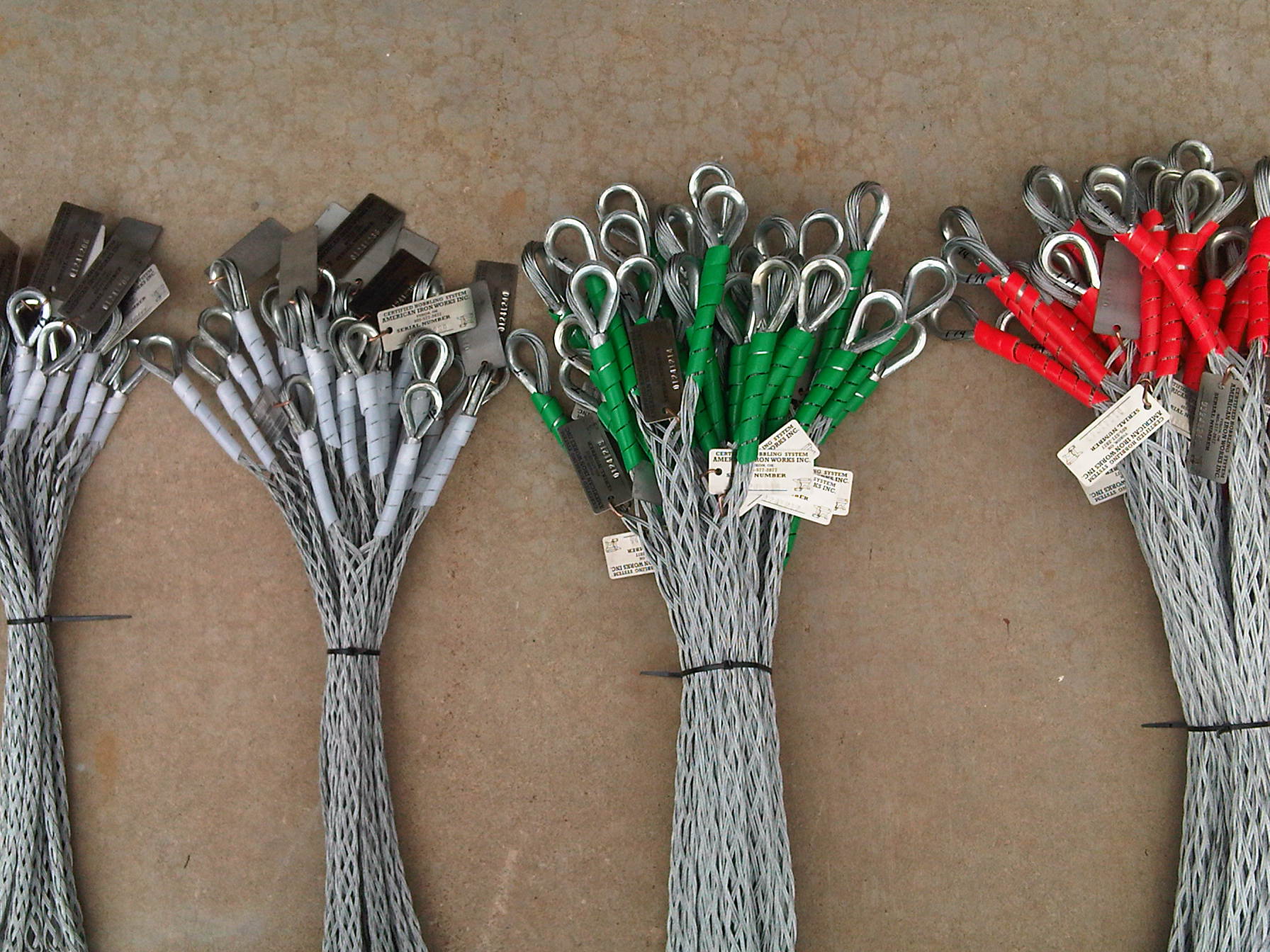

Test CERTIFICATIONS and TRACEABILITY also available.
