HOSE HOBBLES

Guard against accident in the event of failure of hose connection

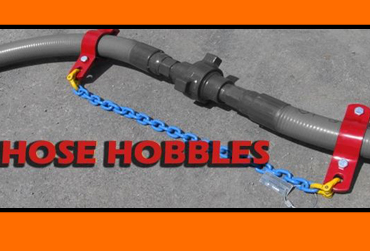

Hose Hobbles are used to secure ends of rotary and other high pressure hoses to guard against accident in the event of failure of hose connection

America's # 1 Source

  • Safety Rig Hose Hobbles

    Safety Rig is America's #1 Source for oilfield safety products, including whipchecks and whipsocks, pipe clamps and hose hobbles, fall arrest systems and more. For more information on the safety products we carry, email us at sales@safetyrig.com

  • high & low pressure hose clamps

    We supply hose clamps for large O.D. hose and small O.D. hose in both high pressure and low pressure styles, 2 bolt and 4 bolt options in 3/4" up to 12" sizes or custom sizes as well fom 10 mm up to 356 mm. Call or email us today with custom size for a fast quote for hose clamps of any size.

  • HP HOSE CLAMPS/ HOBBLES

    Our hose clamps are Made in the USA. We stock many sizes of high pressure hose clamps for rotary hoses, cementing hoses, or low pressure industrial hoses in both 2 bolt and 4 bolt style. Hose hobbles can be sold by the singel clamp or by the hundreds in both single clamp style, clamp x clamp style or clamp by wire rope by shackle/ pad eye or other special configurations upon request.

Why Hose Hobbles

Secure

Hose Hobbles are used to secure ends of rotary and other high pressure hoses to guard against accident in the event of failure of hose connection.Ā We have several different shipping options available from which you can choose, based on your needs. We can even ship using your own freight forwarder. Contact us today, let us know your requirements and we will find the right hose hobbles for your needs.


HOSE HOBBLES QUALITY

Hose Hobbles are used to secure ends of rotary and other high pressure hoses to guard against accident in the event of failure of hose connection.

We use only Grade 8 Alloy Chain and Grade 8 Alloy Connectors. We also offer Pull Tested Cable Systems. All of our Hobble Systems come powder coated, fully assembled with bolts, and ready to install in the field. All hobble systems meet the strict API standards. API Standards require a minimum breaking strength of 16,000 pounds for rotary hose safety clamps. Certified components with serial number and load capacites stated on each tag. Safety Ear Clamps or Shackles are available in 1 bolt, 2 bolt and 4 bolt configurations. Stainless Steel Components available for offshore or high chemical areas.

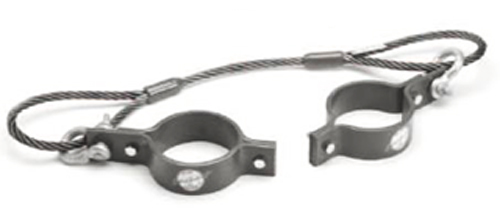

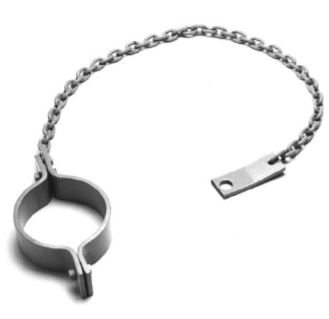

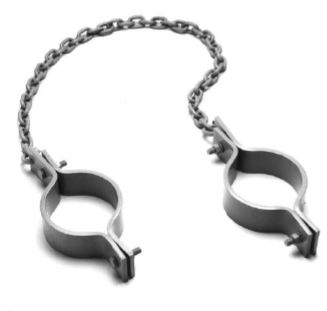

Cable Style hose hobble or Chain Style Type A comes with 1 clamp available with wire rope cable or chain hose hobble Type B comes with 2 clamps available with wire rope cable or chain hose hobble

Hose Hobble Specifications


Type Description Hose Clamp I.D. Weight (lbs) Chain Style Part # Cable Style Part #
A Fits most types 2-1/2" I.D. Hose 4-3/4" 14 HH1 HH1-CT
A Fits most types 3" I.D. Hose 5-1/2" 14 HH2 HH2-CT
A Fits most types 3-1/2" I.D. Hose 6-3/4" 14 HH3 HH3-CT
A For 2" Pipe 2-3/8" 14 HH4 HH4-CT
B 4-1/2" O.D. Stdpp. 4-3/4" 18 HH5 HH5-CT
B 4-1/2" O.D. Stdpp. 5-1/2" 18 HH6 HH6-CT
B 4-1/2" O.D. Stdpp. 6-3/4" 18.5 HH7 HH7-CT
B 5-9/16" O.D. Stdpp. 4-3/4" 18.5 HH8 HH8-CT
B 5-9/16" O.D. Stdpp. 5-1/2" 18.5 HH9 HH9-CT
B 5-9/16" O.D. Stdpp. 6-3/4" 19 HH10 HH10-CT
B 6-5/8" O.D. Stdpp. 4-3/4" 19 HH11 HH11-CT
B 6-5/8" O.D. Stdpp. 5-1/2" 19 HH12 HH12-CT
B 6-5/8" O.D. Stdpp. 6-3/4" 19.5 HH14 HH14-CT

• CABLE Hose Hobbles are tagged and pull tested.
• CHAIN Hose Hobbles utilize the strongest chain available.
• All hobble systems are LOAD TESTED
• All hobble systems are LOAD CERTIFIED
• Powder coated components.
• Fully Assembled w/ bolts.
• Ready to IŠ)/Önstall in the field.
• Any Size



Single Bolt Clamps, Double Bolt Clamps, or 4-Bolt Clamps



CUSTOM CONFIGURATION?
No Problem. Let us know if you have specific requirements on lengths, end connections, cables or chains.

hose hobble hose hobble hose hobble hose hobble hose hobble

hose hobble hose hobble hose hobble hose hobble hose hobble

hose hobble hose hobble hose hobble hose hobble hose hobble

hose hobble hose hobble hose hobble hose hobble hose hobble


*Domestic Shackles are a requirement for rigs operating in the Gulf of Mexico.

**The hose manufacturer is required to mark the hose body where such clamps are to be fitted in accordance with requirements in API Spec 7K. Safety clamps shall be designed to provide one or more attachment points that will allow the user to secure a length of chain of a wire rope sling to the safety clamp. Such attachment points shall incorporate a 28mm (approximately 1-1/8 in.) minimum diameter hole for attaching a safety chain or wire rope sling and will be so designed as to allow adequate clearance from the hose. The chain or wire rope sling, and the attachment hardware, such as a shackle or connecting link shall have a minimum breaking strength of 72640 N (16,000 lbs.), or a working load limit of 9600 N (3,000 lbs.) with a 5 to 1 safety factor for hoses up to 4 in. internal diameter. For hoses with 5 in. and 6 in. internal diameter, the minimum breaking strength shall be 145280 N (32,000 lbs.), or a working load limit of 27240 N (6,000 lbs.) with a 5 to 1 safety factor. The chain or wire rope sling shall be used to handle the ends of the hose, and provide a means of restraining the end of the hose if the end fitting becomes disconnected. The free end of the chain or wire rope sling shall be attached to a secure structure or object that is capable of withstanding the breaking force of the chain or wire rope sling, and shall be of a sufficient length without restricting the movement of the hose.




For pricing and information, email us at sales@safetyrig.com or call us at (832) 474-4440.
